ESD Anti-Static Foam – EVA – PE – EPE – PU Foams
ESD Anti-Static Foam is a specialty foam designed for the package, storage and transportation of sensitive goods.
Electronic Packaging, surface material, seals & gaskets, shock absorption, including PE foam, EVA foam, PU foam, EPE foam, IXPE foam, to meet all your ESD Anti-Stati Foam requirements.
ESD Anti-Static Foams can be supplied as sheets, blocks, or specialty cut-out for specific objects.
ESD Anti-Static EVA Foam, is closed-cell foam, which is made of EVA material and conductive carbon powder fill, EVA is a molded foam.
ESD Anti-Static EVA Foam has excellent cushioning and flexibility, for protection of sensitive goods.
More important, ESD EVA foam life is several times to dozens of times longer that the ESD Plastic Corrugated box.
ESD Anti-Static EVA Foam has a greater resistance to the wear & tear and multiple usage.
Colors:- Black
Density:- 80 – 100Kg/m3
Thickness:- 1 – 100mm
Volume Resistivity:- 10^6-10^9
Cut to size or shape MOQ 500

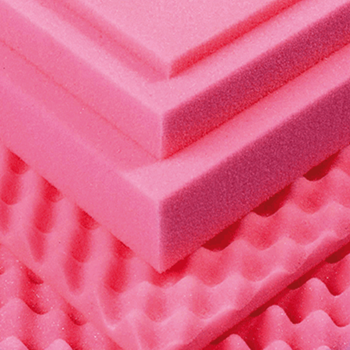

Anti-Static EPE Foam or ESD Conductive Pink
Conductive EPE Foam is ESD Pink Foam, which is a type of closed cell, pink color, Anti-Static Polyethylene Foam, because it is light weight, soft, anti-static features it is commonly used of packaging for sensitive products, when layers are laminated together, this forms a firmer packaging foam. As different applications, it can be made into foam roll, foam inserts, foam sheets, foam padding and so on.
Colors:- Black or Pink
Density:- 20kg/m3
Thickness:- 1mm – 100mm
Length:- 50 – 2200mm
Width:- 50 – 1200mm
Surface resistance:- 10e8-10e11ohms
Cut to size or shape MOQ 500 pieces.
ESD PE Foam Seal & Gasket Thin Foam
ESD Polyethylene foam for sealing and providing protection, waterproof, dust-free and shock absorption, with compression performance.
High temperature and high humidity stability.
Thickness:- 0.5mm / 0.8mm , 1mm & 5mm
Density:- 1.14kg – 2.8kg
Volume Resistivity:- 10^3-10^6 or 10^6-10^9
Maximum operating temperature 100C°
Cut to size or shape MOQ 500 pieces.
ESD Anti-Static PU Foam
ESD PU Foam is a open cell soft foam polyurethane (PU).
With the open cell structure this ESD PU Foam is ideal for packaging and transportation of sensitive components.
Thickness:- 2mm – 500mm
Colors:- Black
Density:- 20-35Kg/m3
Surface resistivity:- 10^6-9ohms
Customizable cut to size or specifications MOQ 500 pieces.
ESD Anti-Static PE Foam
ESD Polyethylene (PE) Foam, is a type of closed cell foam, it’s Eco-friendly, low density, electrostatic protective industrial packing foam. As foam surface resistance difference, it has Anti-Static PE foam and Conductive PE foam = 2 types of foam. ESD PE foam roll, foam sheets, foam inserts.
Thickness:- 6mm – 50mm
Density:- 40-100Kg/m3
Surface Resistance:- 10^6-10^9
Cut to size or shape MOQ 500 pieces.
Anti-Static IXPE Foam
Anti-Static IXPE a close cell cross linked Polyethylene foam with high density & chemical resistance.
Thickness:- 0.5-100mm
Density:- 25/27kg m3
Color:- Black
Surface Resistance:- 10^3-10^9ohms
Chemical resistance: resistant to organic solvents, acids, bases etc.
Customizable cut outs to specifications MOQ 500 pieces.
