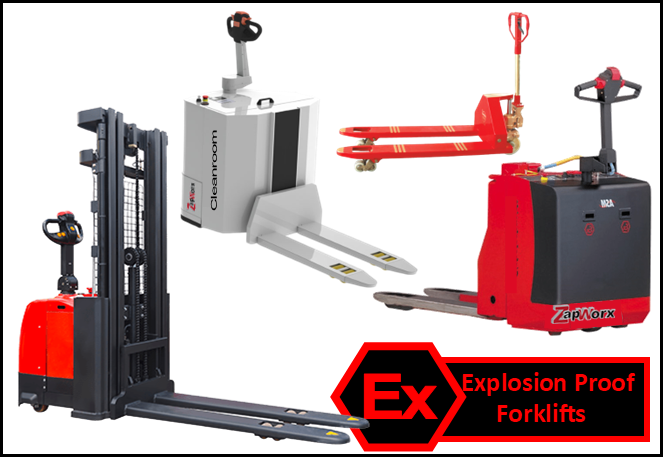

Ex Explosion Proof Forklifts, Ex Pallet Trolleys ATEX & IECEx Forklifts

Especially designed for hazardous environments. Intrinsically Safe.
For use in flammable and explosive workspaces. Non-Sparking, Non-Magnetic, Corrosion Resistant.
Offshore / Onshore know your applicable Hazardous Zone 1 & 2 for flammable gasses. Zones 21 & 22 for flammable dust.
Forklifts & Pallet Trucks for Hazardous Areas.
Flameproof Pallet Trucks

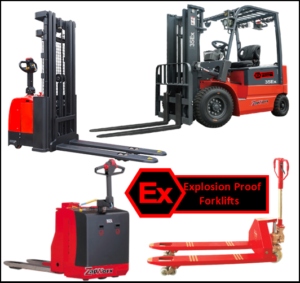

Ex Pallet Trolley, Flameproof Pallet Jack, IECEx Flameproof Forklift, Explosion-proof Electric pallet truck, ATEX Explosion Pallet Trolley
Ex Pallet Trolley, Flameproof Pallet Jack, IECEx Flameproof Forklift, Explosion-proof Electric pallet truck, ATEX Explosion Pallet Trolley
Hazardous Area Zones – do you know what zone you will be operating your equipment in?
ATEX Zone: a place in which an explosive atmosphere is:-
Gases Zone 1 = likely to occur in normal operation occasionally.
Gases Zone 2 = not likely to occur in normal operation and only for very short durations.
Dusts Zone 20 = continually present and enclosed areas.
Dusts Zone 21 = likely to occur in normal operation occasionally
Dusts Zone 22 = not likely to occur in normal operation and only for very short durations.

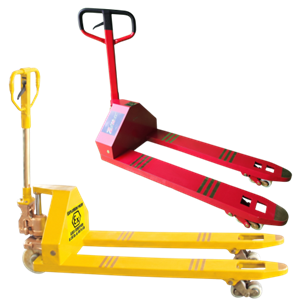

Ex Pallet Tolley Jack ESD Safe
Ex Pallet Tolley Jack ESD Safe

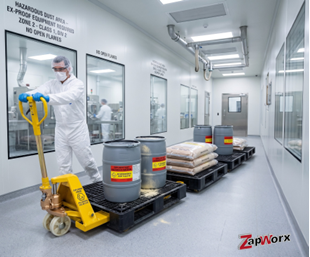

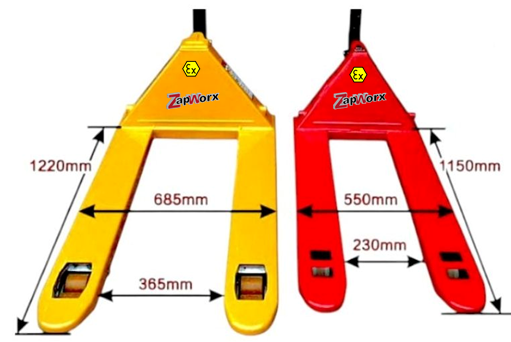

Ex Pallet Trolley Truck Jack.

Ex ATEX Plus II range Hand Push Pallet Trolley Truck 2 Ton Lift Capacity Aluminum Bronze Non-Sparking – Non-Magnetic – Corrosion Resistant, for use in flammable and explosive work places.
ATEX Zones 1, 2, 20, 21 & 22 ATEX Rated Ex GB IIB
Ex ATEX Plus II pallet truck is ideally equipped for use in potentially explosive areas such as petrol filling (zones 1 and 2) zone 20 where explosive atmosphere is continuously present in enclosed areas e.g. tank or grain silos (zones 21 and 22).
Aluminum Bronze pallet truck prevents electrostatic charging, making it suitable for use in potentially explosive atmospheres, with an additional grounding chain.

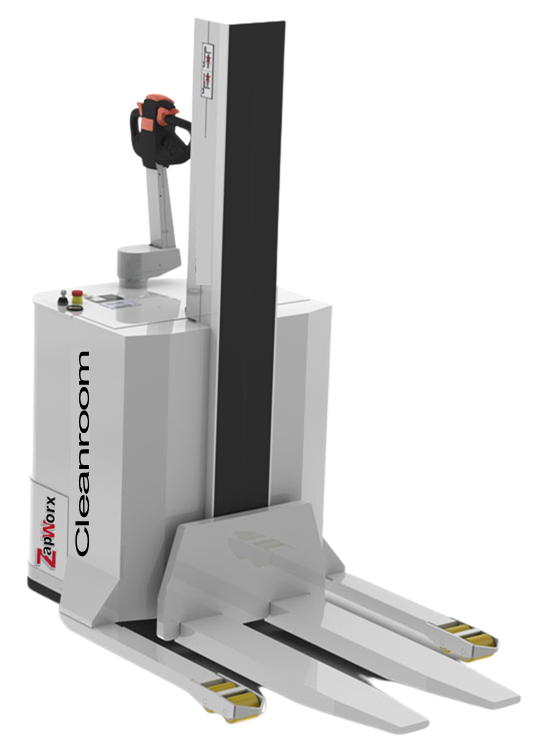

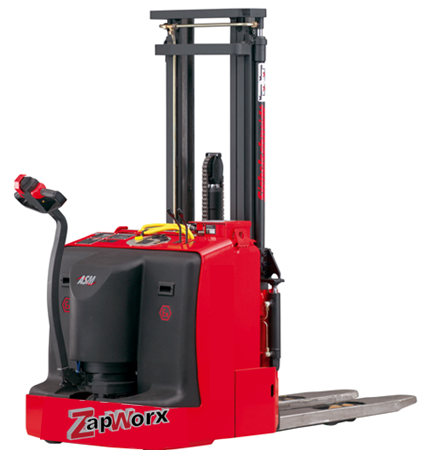

Ex Pallet Stacker Zone 2 and 22
Ex Pallet Stacker Zone 1 & 21 - Zone 2 &22 ESD Non-Sparking ATEX Pallet Stacker IECEx Stacker

Ex Pallet Stacker for Hazardous Areas Zone 1 & 21 – Zone 2 & 22

Electric Pedestrian Pallet Stacker, for load handling in confined areas and potentially explosive Zones.
Depending on the Explosion Zones 1 & 2 – Zone 2 & 22 and as a Zone 1 vehicle for gas Explosion Group IIc
Ex charging system for recharging the battery in potentially explosive atmospheres.
Available options: weighing system, 125mm lift to accommodate ramps.
Lift Capacity Options:
  • 1250kg
  • 1600kg
  • 2000 kg
  • Lift height up to 5700mm

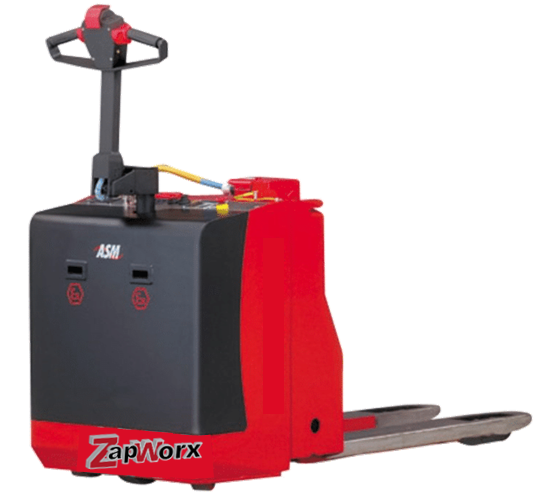

Ex Pallet Truck for Hazardous Areas Zone 1&21 – Zone 2&22

Electric Pedestrian Pallet Truck, for Explosive Zones.
  • Ex II 2G IIB T4
  • Ex II 2G IIB + H2 T4
  • Ex 11 2G IIB + C2H2 T4
  • Ex II 2G IIB+H2+C2H2 T4
  • Ex II 2D T130°C
Optional Fixed or Hinged stand platform, allowing the Ex Pallet Truck to be utilized in passenger mode at speeds up to 10km/h, or in pedestrian mode at speeds of up to 6 km/h. This ensures high maneuverability even in confined spaces.
Lifting Capacity Options:
  • 2000kg
  • 2500kg
  • 3000kg

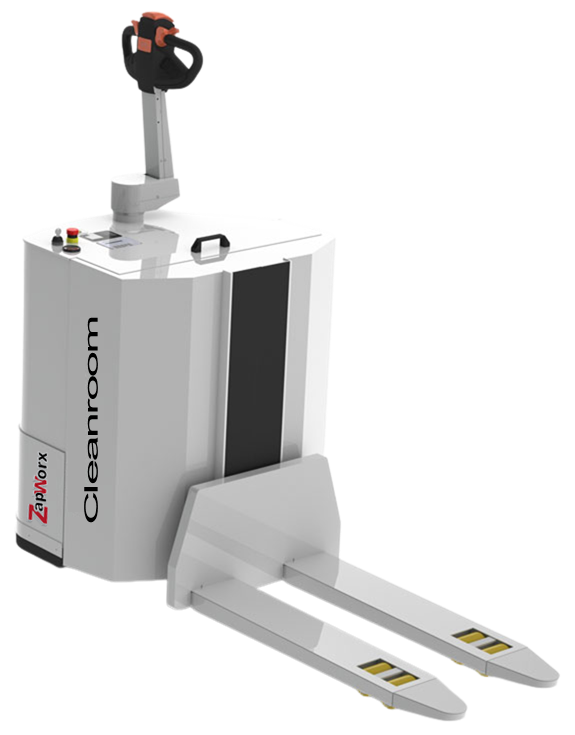

Ex Electric Pallet Truck Zone 1&21 - Zone 2&22
Ex Electric Pallet Truck Zone 1&21 - Zone 2&22 ESD Safe ATEX & IECEx Pallet Truck
Ex Forklift Zone 2 ESD Safe
Ex Forklift Zone 2 ESD Safe ATEX & IECEx Forklift

Ex A Series Electric Forklift

Ex A Series Explosion proof  reaches the Exdem(ib)mbs II BT4 Gb/Ex tD(ibD)mbD A21 IP65 T130°C
For Controlled us in the gas environment of Zone1 & Zone2 and dust environment of Zone 21 & Zone 22 separately or coexist.
Explosion proof type equipment installed:-instrument panel – control box – head light – brake light – alarm light – accelerator – traction motor – pump motor – battery – emergency switch – Antistatic tyres – computerized traveling & lifting & steering – full hydraulic steering system and more.

Lifting Height 3000mm

With Mast Height @ 4152mm

Load Capacity 3500kgs

Overall Weight 5460kg

Flameproof Zoned Forklifts for Dangerous Goods Environments

ATEX & IECEx Forklifts
